The Physics of Separation: Mastering Cyclone and Hydro Cyclone Technology
By Mike Sondalini, PWW EAM System Consultant
In coordination with BIN95 Business Industrial Network
Updated: June 16, 2026

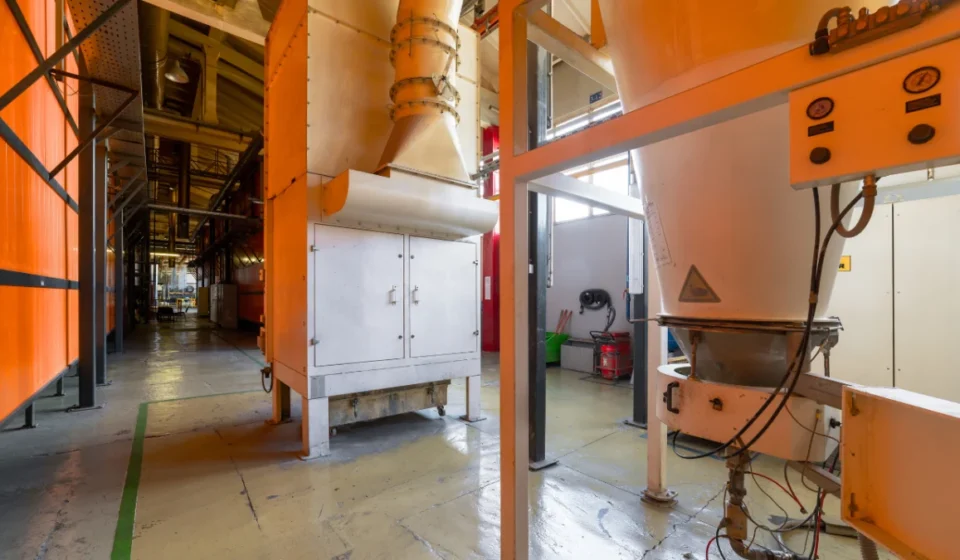

Introduction: The Invisible Vortex
In the realm of industrial fluid dynamics, few tools are as deceptively simple yet profoundly effective as the cyclone separator. At its core, the technology mimics one of nature’s most destructive forces: the tornado. Just as a twister uses a spinning vortex to lift debris, vehicles, and even livestock kilometers into the atmosphere—segregating heavy materials from light air—industrial cyclones harness the power of centrifugal force to purify gas and liquid streams. By understanding the mechanical principles of these separators, engineers can optimize plant efficiency, minimize equipment wear, and ensure the longevity of critical asset management systems.
Main Facts: The Mechanics of Centrifugal Separation
A cyclone separator is a static mechanical device designed to segregate solid or liquid particles from a continuous flow of gas or liquid. The fundamental operating principle relies on the relationship between particle mass, stream velocity, and centrifugal force.
When a high-velocity stream enters the cyclone chamber, it is forced into a circular, spiraling path. Because particles of different densities and sizes possess varying inertia, they react differently to this spinning motion. Heavier or larger particles, unable to keep pace with the tight turn of the gas or liquid, are flung outward toward the chamber walls. Once they strike the wall, they lose their kinetic energy and slide down due to gravity, collecting at the bottom for extraction.
The "separation cut" is determined by the specific geometry of the cyclone. By adjusting the diameter, inlet angle, and cone length, engineers can design systems that target the removal of particles above a precise micron threshold.
Chronology of Development and Application
The evolution of the cyclone separator tracks closely with the development of industrial processing in the 20th century. Initially utilized in the early chemical and agricultural sectors for dust collection, the technology transitioned from simple gravity-based settling chambers to the highly engineered, high-velocity vortex systems used today.
- Early 20th Century: Introduction of basic tangential-inlet cyclones for sawmill dust and grain processing.
- Mid-20th Century: Refinement of the "hydro cyclone" for the mining and chemical industries, allowing for the separation of solid-liquid suspensions.
- 1980s–1990s: Standardized design parameters (as noted in Perry’s Chemical Engineer’s Handbook) were established, allowing for predictable performance in series and parallel configurations.
- Present Day: Modern EAM (Enterprise Asset Management) systems now incorporate real-time monitoring of cyclone wear and throughput, shifting maintenance from reactive to predictive.
Supporting Data: Design and Flow Parameters
The efficiency of a cyclone is dictated by a rigid set of physical parameters. The two most common designs are the Tangential Inlet and the Axial Inlet.
1. The Tangential Inlet (Axial Discharge)
This is the industry standard for high-throughput applications. It is characterized by its cost-effectiveness and versatility. The stream enters the top chamber tangentially, initiating a rapid spin. As the stream moves down the tapering cone, the volume decreases, causing the velocity to increase significantly. This acceleration allows the cyclone to capture progressively smaller particles as they descend.
2. The Physics of the "Reverse Vortex"
A critical, often misunderstood element of cyclone design is the creation of the inner vortex. Drawing an analogy to cigarette smoke being sucked out of a moving car window, we see a natural law in action: a moving stream of fluid creates a low-pressure zone at right angles to its direction of motion. In a cyclone, the high-velocity spinning against the wall creates a low-pressure core in the center. This core forces a reverse-spiraling column of gas to move upward through the central outlet, effectively separating the "clean" fluid from the "dirty" waste collected at the walls.
Critical Operational Factors
- Velocity Consistency: The system requires a steady state. Fluctuations in flow rate cause the vortex to collapse or become unstable, leading to particle re-entrainment.
- Airtight Bottom Outlets: If air leaks into the bottom of the collection chamber (the "dustbin"), it destroys the low-pressure core. This effectively "sucks" the separated particles back into the main stream, rendering the separation useless. Automated rotary valves or twin butterfly air-locks are mandatory to maintain pressure integrity.
- Agglomeration: The tendency of particles to stick together can enhance or hinder separation. In systems where particles are prone to clumping, cyclones are highly effective; however, sticky, wet, or electrostatic materials may require wall coatings or vibration-assisted discharge.
Implications for Industrial Reliability
For the facility manager or reliability engineer, the cyclone is not merely a separator; it is a sacrificial component that protects downstream machinery. However, this comes with its own maintenance overhead.
Erosion and Material Selection
High-velocity particle impact is essentially an abrasive blasting process on the interior walls. Over time, this causes wall thinning and eventual failure.
- Linings: For aggressive materials, standard steel is insufficient. Hardened ceramic tiles, urethane plastics, or specialized rubber linings are required.
- Maintenance Strategy: Engineers must monitor particle hardness versus liner hardness. A rubber liner may be excellent for high-impact, soft particles, but can be shredded by sharp, metallic shards.
Series and Parallel Configurations
When efficiency requirements exceed the capability of a single unit, cyclones are configured in series or parallel.
- Series: Used for multi-stage cleaning. The first unit handles large debris, while the second (often smaller and higher-velocity) captures fine particulate. Note that this creates a massive pressure drop, requiring significantly more fan power.
- Parallel: Used for high-volume throughput. By splitting the stream across multiple cyclones, the plant can maintain consistent velocity and pressure without the massive energy draw of a single, giant unit.
Expert Insight: The Holistic Approach to Asset Management
As Mike Sondalini notes in Industrial Manufacturing Wellness, successful asset management is not about installing equipment and hoping for the best; it is about understanding the scientific and mathematical underpinnings of each unit operation.
The maintenance of a cyclone system should be integrated into a facility’s EAM strategy:
- Baseline Performance: Establish what "clean" looks like. What is the particle size distribution of the output?
- Predictive Inspection: Use ultrasonic thickness gauging on the exterior of the cyclone walls to monitor erosion rates.
- Process Integration: Ensure that downstream fans and pumps are balanced to account for the pressure drop across the cyclone.
By treating the cyclone as a core component of plant reliability—rather than a passive piece of ductwork—maintenance teams can prevent unexpected downtime, reduce the frequency of filter changes, and significantly extend the life of expensive downstream equipment like pumps and turbines.
Conclusion
The cyclone separator remains one of the most elegant examples of fluid mechanics applied to industrial needs. By mastering the variables of velocity, inlet geometry, and pressure-seal integrity, engineers can harness the power of the vortex to improve both the efficiency and the sustainability of their operations. Whether it is removing hazardous dust or separating critical chemical components, the cyclone stands as a testament to the fact that when we work with the laws of physics rather than against them, industrial processes achieve a level of "wellness" that is both repeatable and optimal.
References
- Fayed, M. E., & Otten, L. (1997). Handbook of Powder Science and Technology, Chapter 15.
- Perry, R. H. (1984). Perry’s Chemical Engineer’s Handbook. McGraw-Hill Book Co.
- Sondalini, M. (2026). Industrial Manufacturing Wellness: The Complete Guide to Successful Enterprise Asset Management.
