Carlo Gavazzi Elevates DC Power Monitoring: Introducing the DCM2 Energy Meter Series
In an era defined by the rapid electrification of heavy-duty transport and the escalating complexity of decentralized energy storage, precise power measurement has become the cornerstone of grid stability and operational efficiency. Carlo Gavazzi Automation, a global leader in the design and manufacture of electronic control components, has officially unveiled its latest innovation: the DCM2 direct-connection energy meter.
This new series represents a significant leap forward in the company’s DC metering portfolio, specifically engineered to handle the rigorous demands of high-voltage and high-current applications. By bridging the gap between standard industrial requirements and the massive power throughput needed for modern infrastructure, the DCM2 is positioned to become a benchmark in the energy management sector.
Main Facts: Engineering for the Megawatt Era
The DCM2 is not merely an iterative update; it is a fundamental expansion of Carlo Gavazzi’s capabilities. Designed to support systems reaching up to 1,500 V DC and 1,500 A DC, the unit is capable of monitoring applications as large as 2.25 MW. This capacity places the DCM2 firmly at the forefront of the green energy transition, where higher voltages are increasingly utilized to reduce transmission losses and optimize energy delivery.
Key Technical Specifications
- Operating Voltage: Up to 1,500 V DC.
- Current Handling: Up to 1,500 A DC (Direct Connection).
- Power Capacity: Capable of monitoring up to 2.25 MW applications.
- Connectivity: Equipped with RS485 Modbus RTU and Ethernet Modbus TCP, ensuring seamless integration into existing Industrial Internet of Things (IIoT) frameworks.
- Regulatory Compliance: cURus approval and CTEP compliance, facilitating immediate deployment within the North American market.

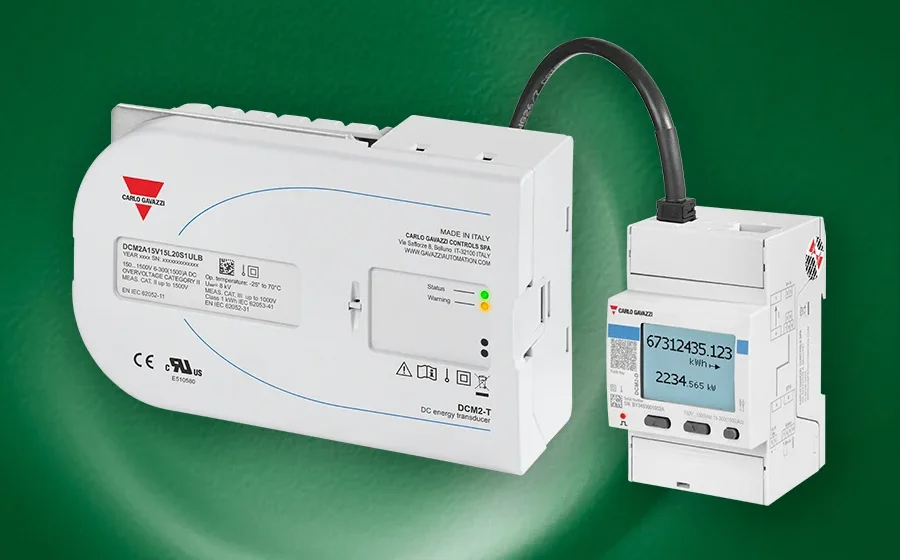

The system architecture consists of a robust transducer designed for precise voltage and current measurement, paired with a sophisticated display unit that serves as the command center for data acquisition and diagnostics.
Chronology: The Evolution of Carlo Gavazzi’s Metering Portfolio
To understand the significance of the DCM2, one must view it within the context of Carlo Gavazzi’s broader technical trajectory.
Phase I: Establishing the Foundation (DCM1 and DCT1 Series)
Several years ago, Carlo Gavazzi introduced the DCM1 and DCT1 series. At the time, these devices were considered highly effective for standard DC metering and transducer applications, typically supporting up to 1,000 V DC and 600 A DC. These units provided the industry with reliable, compact solutions for solar PV arrays, smaller battery banks, and lower-power industrial DC distribution.
Phase II: The Demand for Higher Power
As the market shifted toward Megawatt Charging Systems (MCS) for long-haul electric trucks and utility-scale energy storage systems (BESS), the limitations of the previous generation became clear. Industry operators began demanding equipment that could withstand higher thermal loads and provide greater diagnostic visibility.
Phase III: The Launch of the DCM2
Recognizing this shift, Carlo Gavazzi invested in R&D to bridge the power gap. The DCM2 was developed specifically to meet the needs of the emerging "Mega-Watt" economy. The launch marks the company’s transition from general industrial DC monitoring to specialized, high-power infrastructure support, signaling a clear strategic pivot toward the future of heavy-duty energy management.
Supporting Data: Addressing High-Power Infrastructure Needs
The DCM2 is designed with a suite of features tailored to the environments in which it will operate. Reliability in a 1.5 MW system is not just a convenience; it is a safety requirement.
Enhanced Safety and Installation Features
- Thermal Integrity: The DCM2 features real-time temperature monitoring, a critical component for systems operating at high currents where heat dissipation can significantly impact equipment longevity and safety.
- Tamper-Resistant Design: With sealable terminal caps, the unit meets strict utility standards, ensuring that data integrity is maintained for revenue-grade metering and billing applications.
- Modular Installation: The inclusion of busbar installation features allows for simplified integration into existing DC bus architectures, reducing the installation footprint and labor time—a critical metric for contractors building out EV fast-charging stations.
- Proactive Diagnostics: Beyond simple measurement, the DCM2 includes Modbus diagnostic alerts. This allows system administrators to receive real-time notifications regarding potential faults, voltage sags, or thermal excursions before they escalate into costly system downtime.
Implications: The Role of DCM2 in the Global Energy Transition
The introduction of the DCM2 comes at a pivotal time for global energy infrastructure. As the world moves toward net-zero targets, the demand for sophisticated DC monitoring is surging across three primary sectors.
1. The EV Charging Revolution
The "Megawatt Charging System" (MCS) is the new frontier for electric mobility. Unlike standard passenger vehicle chargers, MCS systems require the ability to handle massive energy transfers in minutes. The DCM2 provides the precise monitoring required to ensure these high-speed transfers do not compromise the health of the vehicle’s battery or the grid connection point.
2. Battery Energy Storage Systems (BESS)
As renewable energy penetration increases, the need for large-scale BESS to store excess wind and solar power has grown exponentially. Because these systems are increasingly operating at 1,500 V to maximize efficiency, the DCM2’s voltage handling capabilities make it an ideal candidate for monitoring large-scale, utility-grade storage deployments.
3. Microgrids and DC Distribution
In remote locations or industrial campuses, DC microgrids are becoming the preferred method for managing local power generation and consumption. By using the DCM2, facility managers can gain granular insight into their energy flow, enabling better load balancing and significantly reducing energy waste.
Professional Insights and Future Outlook
The launch of the DCM2 reflects a broader industry trend toward "intelligent metering." It is no longer enough to measure voltage and current; the modern meter must act as a data node within a larger digital ecosystem.
Why Integration Matters
By utilizing both RS485 Modbus RTU and Ethernet Modbus TCP, Carlo Gavazzi has ensured that the DCM2 can talk to both legacy industrial control systems and modern, cloud-based monitoring platforms. This dual-protocol approach is vital for companies that are retrofitting older substations while simultaneously building out new, software-defined infrastructure.
The North American Advantage
The decision to prioritize cURus approval and CTEP (California Type Evaluation Program) compliance is a strategic move that acknowledges the complexities of the North American regulatory landscape. CTEP compliance is particularly vital for any entity looking to sell power or bill based on metered usage, positioning the DCM2 as a "revenue-grade" tool rather than just a monitoring device.
Conclusion: A New Standard for DC Metering
Carlo Gavazzi Automation has successfully delivered a product that balances raw power with digital intelligence. The DCM2 is more than just a measurement tool; it is a protective, analytical, and communicative asset for the modern energy landscape.
As we look toward the future of energy infrastructure, the ability to monitor high-power systems with accuracy and safety will be the primary determinant of project success. With the DCM2, Carlo Gavazzi has provided the industry with a reliable foundation upon which to build the next generation of high-power energy solutions.
For engineers, system integrators, and facility managers looking to upgrade their infrastructure, the DCM2 represents a forward-looking investment that meets the technical rigors of today while preparing for the energy demands of tomorrow.
For more detailed technical specifications, wiring diagrams, and procurement information, interested parties are encouraged to visit the official Carlo Gavazzi website.
Editorial Note: This article is based on the latest technical documentation provided by Carlo Gavazzi. The shift toward higher voltage and current ratings in commercial and industrial DC systems marks a significant evolution in power electronics, and the DCM2 is a direct response to this technological shift.
